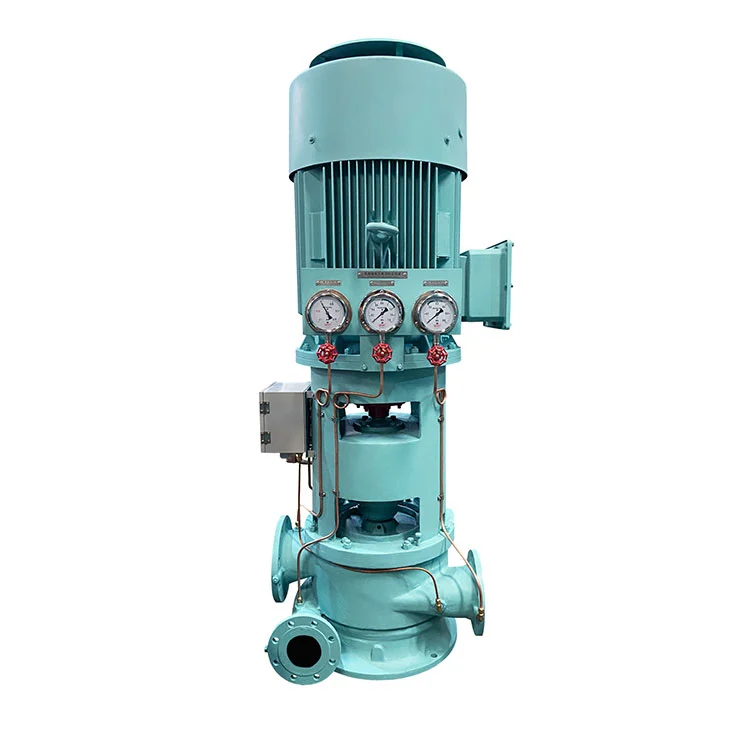

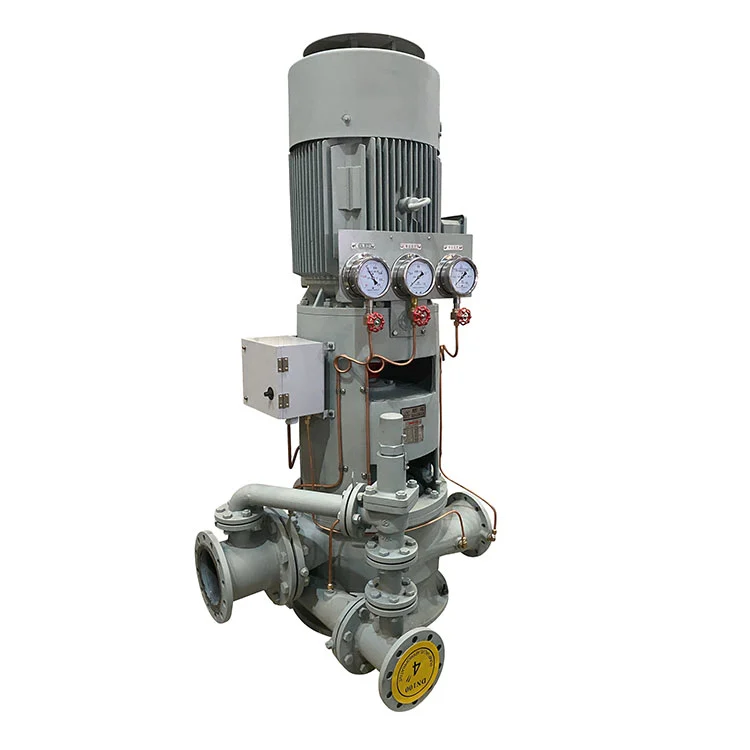

Distinto de las bombas comunes de doble etapa, la bomba centrifugal de doble etapa vertical de la marina CLN tiene dos etapas. Además de la segunda etapa, hay una salida múltiple en la primera etapa. Como bomba de uso general, es muy adecuado para barcos y generalmente se usa en las siguientes condiciones:
Parámetros de rendimiento cuando la frecuencia de potencia es de 50Hz
| Tipo | (50Hz 3 φ 380V) Parámetro técnico principal | Tipo de motor Potencia KW | peso Kg |
||||
| Capacidad m3/h |
Cabeza m |
Velocidad r/min | Npshr m |
||||
| CLN80-340/2A | 51/51 | 29.5/65 | 1480 | 2.8 | Y180L-4H | 22 | 510 |
| CLN80-340/2C | 116/58 | 24/61 | 1480 | 3.4 | Y200L-4H | 30 | 525 |
| CLN80-340/2D | 112/54 | 15/51.5 | 1480 | 4.3 | Y180M-4H | 18.5 | 520 |
| CLN80-340/2E | 141/62 | 25.5/59 | 1480 | 4.2 | Y200L-4H | 30 | 530 |
| CLN100-380/2A | 95/91 | 36.5/86 | 1480 | 4.1 | Y225M-4H | 45 | 786 |
| CLN100-380/2C | 149/95 | 27.5/77 | 1480 | 3.7 | Y225M-4H | 45 | 781 |
| CLN100-380/2D | 141/95 | 16.5/60.5 | 1480 | 3.6 | Y225S-4H | 37 | 740 |
| CLN100-380/2E | 199/99 | 23.5/69.5 | 1480 | 4.2 | Y225M-4H | 45 | 775 |
| CLN125-380/2A | 124/120 | 33.5/77 | 1480 | 4.0 | Y250M-4H | 55 | 915 |
| CLN125-380/2C | 215/120 | 23.5/65 | 1480 | 4.2 | Y225M-4H | 45 | 828 |
| CLN125-380/2D | 199/108 | 17/60.5 | 1480 | 4.2 | Y225S-4H | 37 | 795 |
| CLN125-380/2E | 257/124 | 24/68.5 | 1480 | 3.5 | Y250M-4H | 55 | 925 |
| CLN125-380/2F | 190/80 | 40/80 | 1480 | 4.2 | Y280S-4H | 75 | |
| CLN150-380/2A | 199/182 | 33/79 | 1480 | 5.1 | Y280S-4H | 75 | 1082 |
| CLN150-380/2C | 348/174 | 22/71.5 | 1480 | 4.9 | Y280S-4H | 75 | 1078 |
| CLN150-380/2D | 265/166 | 14.5/62 | 1480 | 4.2 | Y250M-4H | 55 | 902 |
| CLN150-380/2E | 389/182 | 22/70 | 1480 | 4.6 | Y280S-4H | 75 | 1080 |
| CLN150-380/2F | 400/200 | 40/90 | 1480 | 5 | Y315S-4H | 110 | |
| CLN150-380/2G | 210/25 | 170/110 | 1480 | 5 | Y315S-4H | 110 | |
Parámetros de rendimiento cuando la frecuencia de potencia es de 60Hz
| Tipo | (50Hz 3 φ 380V) Parámetro técnico principal | Tipo de motor Potencia KW | peso Kg |
||||
| Capacidad m3/h |
Cabeza m |
Velocidad r/min | Npshr m |
||||
| CLN80-340/2A | 60/62 | 43/95 | 1780 | 3.2 | Y225S-4H | 37 | 710 |
| CLN80-340/2C | 140/70 | 35/89 | 1780 | 4.0 | Y225S-4H | 37 | 710 |
| CLN80-340/2D | 135/65 | 22/75 | 1780 | 5.3 | Y200L-4H | 30 | 640 |
| CLN80-340/2E | 170/75 | 37/86 | 1780 | 5.2 | Y225S-4H | 37 | 710 |
| CLN100-380/2A | 115/110 | 53/125 | 1780 | 5.1 | Y280S-4H | 75 | 970 |
| CLN100-380/2C | 180/115 | 40/112 | 1780 | 4.5 | Y280S-4H | 75 | 970 |
| CLN100-380/2D | 170/115 | 24/88 | 1780 | 4.4 | Y250M-4H | 55 | 885 |
| CLN100-380/2E | 240/120 | 34/101 | 1780 | 5.2 | Y280S-4H | 75 | 970 |
| CLN125-380/2A | 150/145 | 49/112 | 1780 | 5 | Y280M-4H | 90 | 1050 |
| CLN125-380/2C | 260/145 | 34/95 | 1780 | 5.2 | Y280S-4H | 75 | 1010 |
| CLN125-380/2D | 240/130 | 25/88 | 1780 | 5.2 | Y280S-4H | 75 | 1010 |
| CLN125-380/2E | 310/150 | 35/100 | 1780 | 4.2 | Y280M-4H | 90 | 1050 |
| CLN125-380/2F | 228/96 | 56/113 | 1780 | 5.2 | Y315S-4H | 110 | |
| CLN150-380/2A | 240/220 | 48/115 | 1780 | 6.6 | Y315M-4H | 132 | |
| CLN150-380/2C | 420/210 | 32/104 | 1780 | 6.2 | Y315M-4H | 132 | |
| CLN150-380/2D | 320/200 | 21/90 | 1780 | 6 | Y280M-4H | 90 | 1130 |
| CLN150-380/2E | 470/220 | 32/102 | 1780 | 5.8 | Y315S-4H | 110 | |
| CLN150-380/2F | 480/240 | 58/130 | 1780 | 7 | Y315L2-4H | 200 | |
| CLN150-380/2G | 240/204 | 35/156 | 1780 | 6 | Y315L1-4H | 185 | |
